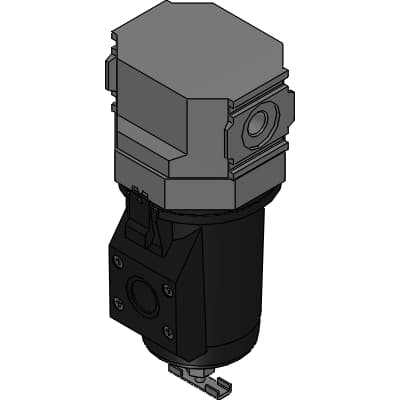

Product Model
FM4000-8-W
Key Features
- 1Modular design for space-saving installation.
- 25μm filtration level for effective dust removal.
- 3Recessed pressure gauge reduces risk of injury and saves space.
- 4Unique chemical fiber structure with a long service lifespan.
- 5Max. operation pressure of 1 Mpa and min. dripping flow rate of 0.03 I/min.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | FM4000 | Port size | 8 : 1/4 |
| Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
| Bowl material | Blank : Metal bowl | Element | Blank : 5μm |
| Differential pressure detection | Blank : Without differential pressure detection port | Flow direction | Blank : Standard flow (left to right) |
| Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
| * Adaptor thread type | Blank : None | Attachment bracket type | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/40/FM%E2%80%BB000?t=list&cid=68&sid=0 |
Specifications may be subject to change without notice
