Product Model
FK-M8-N
Key Features

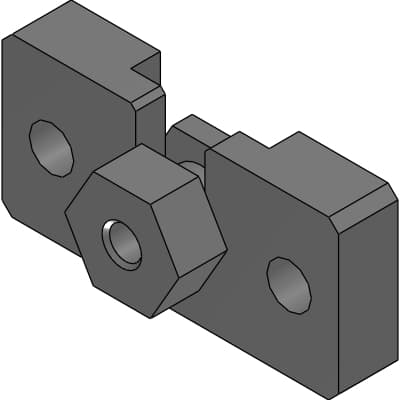

- 1Precision alignment bracket with male thread.
- 2Configurable length options for versatile use.
- 3Steel-backed PTFE layer for durability and low friction.
- 4Standard wrench flats for easy installation.
- 5Multi-layered bearing design for smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FK | Nominal thread size | M8-N |
| Nominal port size of thread x pitch | M8x1.25 | Compatible cylinder | SSD-32, 40, FCD-40, 50 |
| Product information | Product information | ORDER | FK-M8-N |
| Nominal port size | 8mm | Pitch | 1.25mm |
| A | 21.9mm | B | 19mm |
| C | 23mm | D | 15mm |
| E | 5.1mm | F | 3mm |
| G | M8x1.25 | H | 13mm |
| J | 9mm | K | 5mm |
| L | 25mm | M | 25mm |
| N | 14mm | O | 38mm |
| P | 52mm | Q | 7.0mm |
| R | 12.5mm | S | -mm |
Specifications may be subject to change without notice
