Product Model

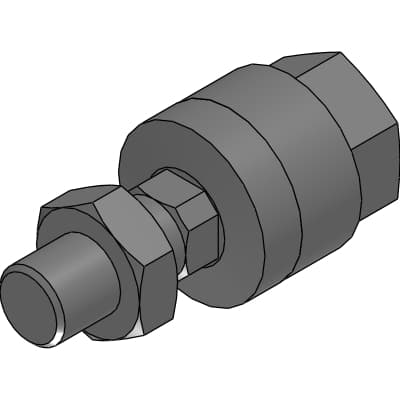

FJ-0-8
Key Features
- 1Precision Alignment: Eliminates misalignment and parallelism defects during cylinder mounting.
- 2Smooth Rod Actuation: Realizes smooth rod actuation for efficient operation.
- 3High Tensile/Compression Force: Permits high tensile and compression forces for robust performance.
- 4Durable Construction: Made from steel with trivalent chromate treatment for durability.
- 5Quick Connection: Features a quick connection system for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FJ | Mounting | 0: Basic type |
| Nominal thread size | 8 | Nominal port size of thread x pitch | M8x1.0 |
| Applicable model | CMA2 / CMK2 / CKV-20 / JSK2 / JSM2-20 | Product information | Product information |
| ORDER | FJ-0-8 | Nominal port size | 8mm |
| Pitch | 1.00mm | A | 48.4mm |
| B | -mm | C | 18.8mm |
| D | 21.0mm | E | 4.0mm |
| F | 13.0mm | G | 9.0mm |
| H | 17.0mm | J | 10.0mm |
| K | -mm | L | -mm |
| N | 5.0mm | P | 12.0mm |
| Q | -mm | S | -mm |
| R | -mm | Allowable eccentricity | 0.75mm |
| Max. working tension and compression | 1.08kN | Weight | 0.061kg |
Specifications may be subject to change without notice
