Product Model

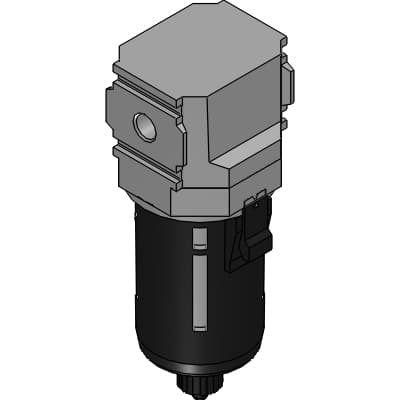

F4000-8-W
Key Features
- 1Efficient Filtration: Removes dust with 5μm elements and tar with 0.3μm elements.
- 2Compressed Air Compatible: Designed for use with compressed air systems.
- 3High Pressure Tolerance: Handles up to 1 MPa working pressure.
- 4Versatile Temperature Range: Operates in ambient temperatures from 5°C to 60°C.
- 5Durable Construction: Features a polycarbonate bowl with manual drain cock for easy maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | F4000 | Port size | 8 : 1/4 |
| Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
| Bowl material | Blank : Polycarbonate bowl | Element | Blank : 5μm |
| Differential pressure detection | Blank : Without differential pressure detection port | Flow direction | Blank : Standard flow (left to right) |
| Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
| * Adaptor thread type | Blank : None | Attachment bracket type | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/42/F%E2%80%BB000?t=list&cid=68&sid=0 |
Specifications may be subject to change without notice
