Product Model

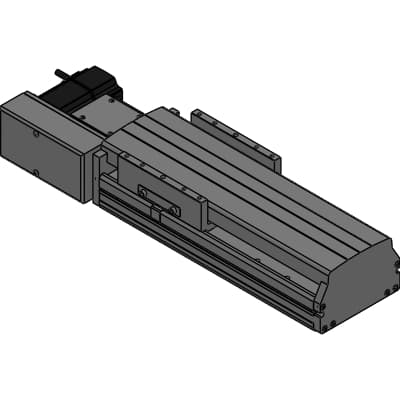

ETV-14-40010-RM2XNNNN
Key Features
- 1High-speed operation up to 2000mm/s.
- 2Compatible with long strokes from 100 to 3500mm.
- 3Excellent rigidity due to two built-in linear guides.
- 4Easy maintenance with an optional grease nipple for lubrication.
- 5Versatile motor mounting options for seamless integration with various motors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ETV | Body size | 14 |
| Lead | 040 : 40mm | Stroke length | 010 : 100mm |
| Position | 0mm | Motor installation methods | R : Right installation |
| Installation motor specifications | M : MITSUBISHI | Motor size | 2 : 200W |
| Belt type | X : Standard (Rubber) | Origin sensor | N : Without |
| Limit sensor | N : Without | Option 1 | N : Body installation direction Standard/Without grease nipple |
| Option 2 | N : Without positioning pin hole | L | 458mm |
| A | 50mm | M | 1 |
| N | 6 | P | 250mm |
Specifications may be subject to change without notice
