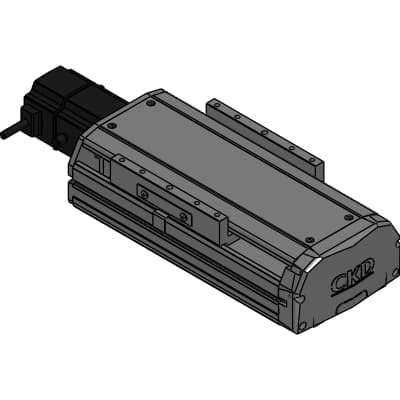

Product Model
ETS-14-05005-EM2NNNNN
Key Features
- 1High precision ball screw drive for accurate movements.
- 2Compatible with various motor manufacturers, including Mitsubishi.
- 3Robust design with built-in linear guides for excellent rigidity.
- 4Versatile motor mounting options for easy integration.
- 5Suitable for industries requiring high-speed and precise control, such as conveyance and sterilization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ETS | Body size | 14 |
| Screw lead | 05 : 5 mm | Stroke length | 005 : 50 mm |
| POS | 0mm | Motor mounting method | E : Direct mounting |
| Motor manufacturer for installation | M : MITSUBISHI | Motor capacity | 2 : 200 W |
| Brake | N : None | Origin sensor | N : None |
| Limit Sensor | N : None | Option 1 | N : Body mounting direction standard/without grease nipple |
| Option 2 | N : Without positioning pin hole | L | 300.500mm |
| AA | 200.000mm | M | 0.000 |
| N | 4.000 | P | 200.000mm |
Specifications may be subject to change without notice
