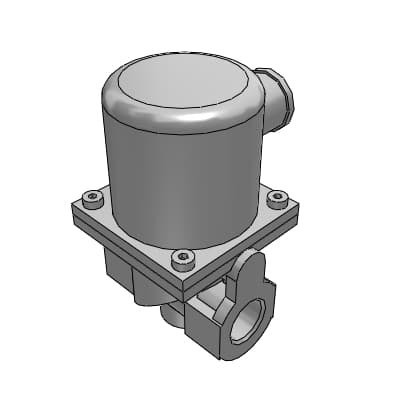

Product Model
DSG-20-AC100V
Key Features
- 1Built with high-quality materials for durability and reliability.
- 2Suitable for hydrogen gas as the working fluid, ensuring safe operation.
- 3Adjustable flow rate even after installation, enhancing flexibility.
- 4DC driven actuator with rectifier eliminates noise and coil burnout.
- 5Prevents foreign matter like dust from entering the valve during piping.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | DSG | Port size | 20 |
| Option | Blank:Standard | Option1 | Blank:None |
| Option2 | Blank:None | Option3 | Blank:None |
| Option4 | None | Voltage | AC100V:AC100V 50/60Hz |
| H1 | 95mm | H2 | 27.5mm |
| H3 | 71mm | L1 | 89mm |
| L2 | 46mm | L3 | 47mm |
| D | 56mm |
Specifications may be subject to change without notice
