Product Model

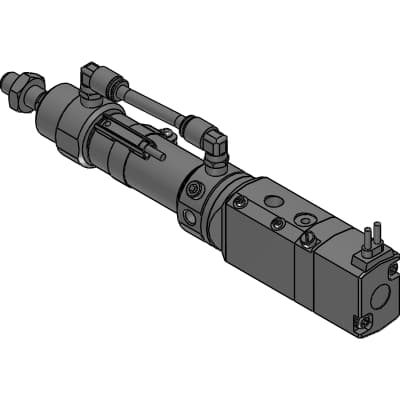

CKV2-M-00-40-25-1-T0H-R
Key Features
- 1High-Performance Double Acting Cylinder: Designed for efficient operation with compressed air.
- 2Non-Rotating Type: Ensures precise control and stability in industrial processes.
- 3Integrated Solenoid Valve: Compact and power-efficient four-way valve integration.
- 4Robust Specifications: Withstands pressures up to 1.6 MPa and operates in temperatures from -5 to 60°C.
- 5Customizable Stroke Length: Available in various bore sizes (20, 25, 32, 40 mm) with adjustable stroke lengths.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | CKV2-M | Bore size | 40mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Stroke | 25mm | How to wire | Blank: Grommet lead wire (300 mm) |
| Voltage | 1 : 100 VAC | Switch model No. | T0: Reed, 1-color LED, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on rod side | Option 1 | Blank: None |
| Option 2 | Blank: None | Option 3 | Blank: None |
| Option 4 | Blank: None | Option 5 | Blank: None |
| Option 6 | Blank: None | Option 7 | Blank: None |
| Accessory 1 | Blank: None | Accessory 2 | Blank: None |
| Stroke position | 0 | Product information | Product information |
| KA | 12mm |
Specifications may be subject to change without notice
