Product Model

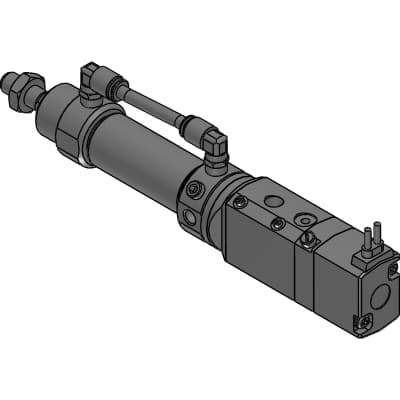

CKV2-00-20-25-1
Key Features
- 1High corrosion resistance due to stainless steel tube and light aluminum end covers.
- 2Easy speed adjustment with a speed adjustment needle for precise control.
- 3Durable construction with no-lubrication sliding packing for improved durability.
- 4Compact design with integrated high-performance four-way valve for efficient operation.
- 5Versatile mounting options including axial foot and rod side flange for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | CKV2 | Bore size | 20mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Stroke | 25mm | How to wire | Blank: Grommet lead wire (300 mm) |
| Voltage | 1 : 100 VAC | Option 1 | Blank: None |
| Option 2 | Blank: None | Option 3 | Blank: None |
| Option 4 | Blank: None | Option 5 | Blank: None |
| Option 6 | Blank: None | Option 7 | Blank: None |
| Accessory 1 | Blank: None | Accessory 2 | Blank: None |
| Stroke position | 0 | Product information | Product information |
Specifications may be subject to change without notice
