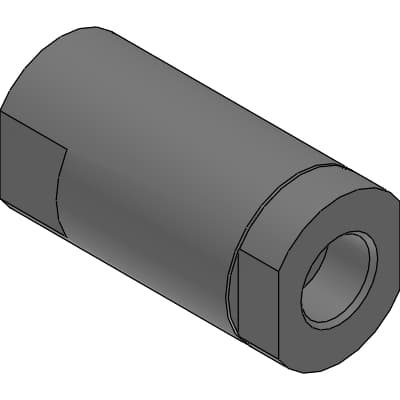

Product Model
CCH-10A
Key Features
- 1Stops fluid dripping to prevent incorrect detections and improves discharge responsivity.
- 2Flow path structure minimizes problems due to catching foreign matter and clogging.
- 3Works under 7.0 MPa with stainless steel material ensuring corrosion resistance.
- 4O-ring sealant and metal touch structure provide stable internal sealing with a long-lasting performance.
- 5Suitable for water cooling of laser processing machines, cleaning equipment, and various fluid control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | CCH | Port size | 10 : 3/8 |
| Type of thread | A : RC | A | 62mm |
| B | Ø32mm | Between hex tang | 27mm |
| D | Rc3/8 |
Specifications may be subject to change without notice
