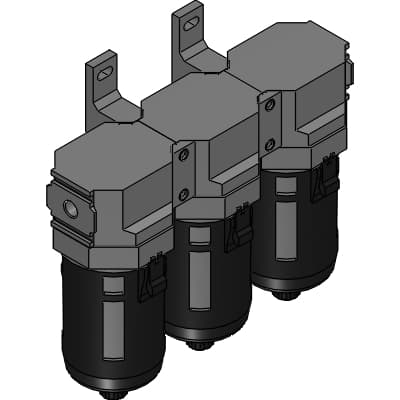

Product Model
C8070-20-W
Key Features
- 1Modular design for easy maintenance and upgrade.
- 2High filtration level of 5μm for general dry air quality.
- 3Includes filter, regulator, and lubricator in one unit.
- 4Dual element construction ensures long-lasting performance.
- 5Compatible with various connection diameters for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | C8070 | Air filter(5 μm ) | F8000 |
| Air filter(0.3 μm ) | F8000 | Oil mist filter | M8000 |
| Port size | 20 : 3/4 | Port thread | Blank : Rc thread |
| Drainage | Blank : With manual drain cock | Bowl material | Blank : Polycarbonate bowl |
| Differential pressure detection | Blank : Without differential pressure detection port | Flow direction | Blank : Standard flow (left to right) |
| Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) | Piping adaptor set (included) | Blank : Not attached |
| Adaptor thread type | Blank : None |
Specifications may be subject to change without notice
