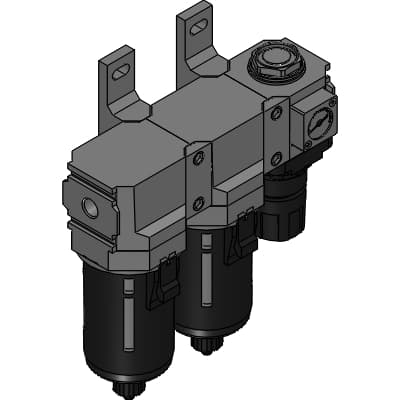

Product Model
C8030-20-W
Key Features
- 1Dual element construction for extended lifespan.
- 2Choose from over 1000 in-stock models, including those with attached pressure meters.
- 3Modular design boosts system efficiency and flexibility.
- 4Ideal for various applications requiring precise air filtration and regulation.
- 5High-quality components ensure reliable performance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | C8030 | Filter | F8000 |
| Oil mist filter | M8000 | Lubricator | R8000 |
| Port size | 20 : 3/4 | Port thread type | Blank : Rc thread |
| Drainage | Blank :With manual drain cock | Bowl material | Blank : Polycarbonate bowl |
| Element | Blank : 5μm | Diff press detect | Blank : Without differential pressure detection port |
| Pressure range | Blank : 0.05 to 0.85 MPa | Relief | Blank : With relief mechanism |
| Pressure gauge | Blank : Standard pressure gauge (G401-W) | Flow direction | Blank : Standard flow (left to right) |
| Distributor | Blank : Without assembled component | Pressure switch | Blank : Without pressure switch |
| Shut-off / lockout valve | Blank : Without valve | Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) |
| Piping adaptor set (included) | Blank : Not attached | Adaptor thread type | Blank : None |
| Attachment gauge type | Blank : Not attached |
Specifications may be subject to change without notice
