Product Model

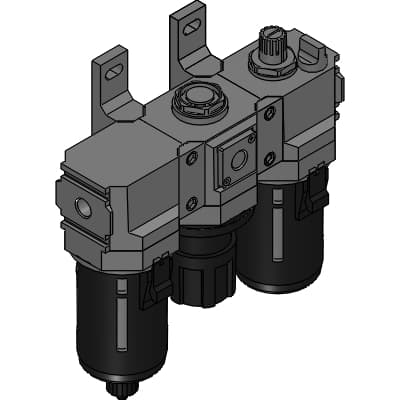

C8000-20-W-TP6
Key Features
- 1Compact modular design for easy integration and maintenance.
- 2High filtration rating of 5μm for superior compressed air quality.
- 3Versatile accessories including pressure gauge, bracket, and bowl guard.
- 4Compatible with a wide range of port sizes (Rc 1/8 to Rc 3/4).
- 5Reliable operation within ambient temperatures of 5°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | C8000 | Air filter | F8000 |
| Regulator | R8000 | Lubricator | L8000 |
| Port size | 20 : 3/4 | Port thread type | Blank : Rc thread |
| Drain discharge | Blank : Lubricator without drain cock | Bowl material | Blank : Polycarbonate bowl |
| Element | Blank : 5μm | Differential pressure detection | Blank : Without differential pressure detection port |
| Pressure range | Blank : 0.05 to 0.85 MPa | Pressure relief | Blank : With relief mechanism |
| Pressure gauge | T : No pressure gauge (gauge port (Rc1/4) assembled sealed) | Flow direction | Blank : Standard flow (left to right) |
| Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
| * Adaptor thread type | Blank : None | Attachment (attached) | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/354/C%E2%80%BB000-P6?t=list&cid=66&sid=0 |
Specifications may be subject to change without notice
