Product Model

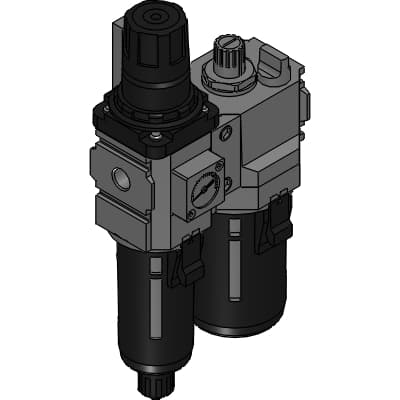

C3010-8-W
Key Features
- 1Compact modular design for easy integration.
- 2Rc 1/4 port size for versatile connections.
- 3Compressed air working fluid with 1 MPa max pressure.
- 4Filtration rating of 5 μm for high-quality air filtration.
- 5Oil storage capacity of 85 cm³ for efficient lubrication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | C3010 | Filter / regulator | W3000 |
| Lubricator | L3000 | Port size | 8 : 1/4 |
| Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
| Drainage Lubricator | Blank : Lubricator without drain cock | Bowl material | Blank : Polycarbonate bowl |
| Element | Blank : 5μm | Pressure range | Blank : 0.05 to 0.85 MPa |
| Relief | Blank : With relief mechanism | Pressure gauge | Blank :Standard pressure gauge (G401-W) |
| Flow direction | Blank : Standard flow (left to right) | Pressure switch | Blank : Without pressure switch |
| Shut-off / lockout valve | Blank : Without valve | Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) |
| Piping adaptor set (included) | Blank : Not attached | Adaptor thread type | Blank : None |
| Attachment gauge type | Blank : Not attached |
Specifications may be subject to change without notice
