Product Model

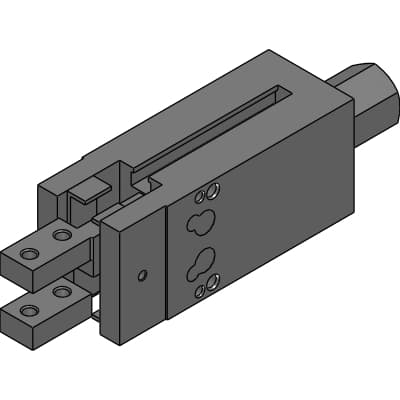

BHA-03CS-FC
Key Features
- 1High Precision: Designed with precise dimensions for reliable performance.
- 2Heat Resistance: Ideal for heat-resistant applications without the need for packing.
- 3Robust Gripping Power: Offers strong gripping force with spring force mechanism.
- 4Versatile Use: Suitable for rotary tables and shuttle mover hands where air piping is not feasible.
- 5Durable Construction: Built with high-quality materials for long-lasting operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | BHA | Size | 03CS |
| Length (Min-Max) | 9mm | Min | 9mm |
| Max | 18mm | A | 30mm |
| B | φ17mm | C | MAX110/MIN105.5 |
| D | 90.0mm | E | 1.5mm |
| F | 57.0mm | G | 14mm |
| H | 2-M4 x 0.7 depth 8 | I | 14mm |
| J | 15mm | K | 26mm |
| L | M6 x 1.0 depth 9 | M | 22mm |
| N | 6mm | Q | 10mm |
| R | 10mm | S | 2 x 2-M4 x 0.7 |
| T | 2 x 2-M4 x 0.7 depth 7 | U | 19mm |
| V | 14mm | W | 4.5mm |
| X | 24mm | Y | 43.0mm |
| Z | 18mm | R1 | 4mm |
Specifications may be subject to change without notice
