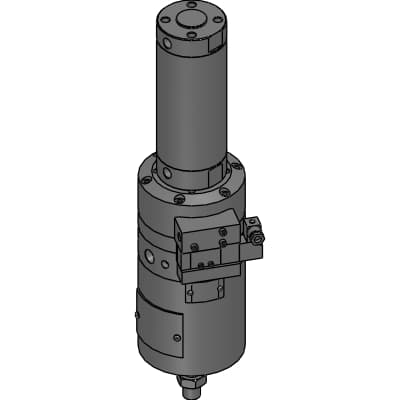

Product Model
BBS-A-D-00-50D-100
Key Features
- 1The BBS-A balancer unit allows heavy loads up to 285 kg to be controlled with minimal force.
- 2Ensures operator safety in workplaces handling heavy loads by preventing accidents.
- 3Heavy objects are transported with an almost manual smoothness, compared to conventional stiff inching movement.
- 4No adjustment is needed when changing workpieces; the optimal condition can be set with one button.
- 5Equipped with a brake as standard to prevent workpieces from falling or bouncing up in case of pneumatic power loss.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | BBS-A | TYPE | Blank : Electric (24 VDC) |
| Load direction | D : Push type | Cylinder orientation (piston rod direction) | Blank : Downward |
| Mounting | 00 : Basic | Bore size | 50mm |
| Stroke | 100mm | Piston rod position | 0mm |
| Accessory | Blank : None | A | 35mm |
| C | 32mm | DA | M8 x 1.25 depth 16mm |
| DB | M8 x 1.25 depth 15mm | E | 58mm |
| F | 110mm | H | 224mm |
| I | 60mm | J | 30mm |
| KK | M18 x 1.5mm | LL | 314mm |
| MM | 20mm | M | 2mm |
| N | 2mm | P | 57mm |
| Q | 81mm | SB | 50mm |
| SD | 32mm | T | 11mm |
| WF | 23mm | X | 374mm |
| XF | 58mm | YA | 15mm |
| YB | 12mm | YC | 32mm |
| YD | 52mm | ZA | Rc1/4 |
| ZB | Rc1/8 | ZC | Rc3/8 |
| CA | 417mm | CD | 16mm |
| CE | 20mm | CF | -mm |
| CI | 19mm | CT | 6mm |
| CJ | 362mm | CM | 60mm |
| CN | 79.6mm | CX | -mm |
| CY | -mm | CZ | -mm |
| FA | 383mm | FD | -mm |
| FF | 11mm | FG | 328mm |
| FL | -mm | FM | -mm |
| FT | -mm | FJ | 346mm |
Specifications may be subject to change without notice
