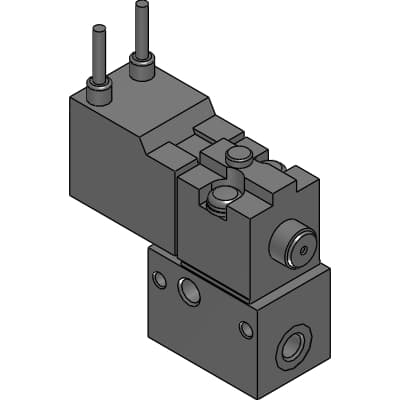

Product Model
B5122-M0E-M5-AC100V
Key Features
- 1High precision pneumatic control for precise operations.
- 2Compatible with a wide range of industrial applications.
- 3Robust design for durability and long service life.
- 4Easy integration with existing control systems.
- 5Reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | B512 | Orifice | 2 : φ1.2 |
| Manual override | M0 : Lateral non-locking (standard) | Electric connections | E : Grommet lead wire (300 mm) (Standard) |
| Pressure classification | - | Coil direction | Blank : Standard direction |
| Port size | M5 : M5 (standard) | Other options | Blank : None |
| Bracket | Blank : None | Voltage | AC100V : 100 VAC 50/60Hz (Standard) |
Specifications may be subject to change without notice
