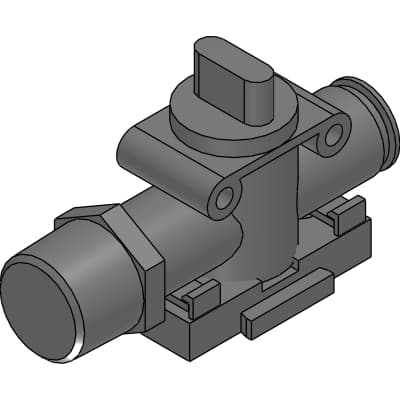

Product Model
2QV-15A-15A
Key Features
- 1High flow rate with a straight flow path and large effective cross-sectional area.
- 2Flame-resistant resin adopted as standard material (UL94 V-0 equivalent).
- 3Compact design with reduced wiring for easy integration and space-saving.
- 4Ideal for air blow stop valves and air cylinder shut-off valves in various applications.
- 5Customizable with air lamp options available for enhanced visibility and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve type | 2 : 2 way valve | Port size (P port) - (A port) | 15A-15A : R1/2 - R1/2 |
| Bracket | Without bracket | P port | 1/2 |
| A port | 1/2 | Model No. | QV-15A-15A |
| A | 22mm | B | -mm |
| C | -mm | D | 10.7mm |
| E | 22.8mm | F | 26.5mm |
| G | 4.2mm | H | 22mm |
| I | 17mm | J | -mm |
| K | 47.5mm | L | 95.0mm |
| M | 15mm | N | 39.8mm |
| O | 22mm | P | 46.8mm |
| Weight | 116g | P-A | 21.4mm^2 |
| A-R | 4.0mm^2 |
Specifications may be subject to change without notice
