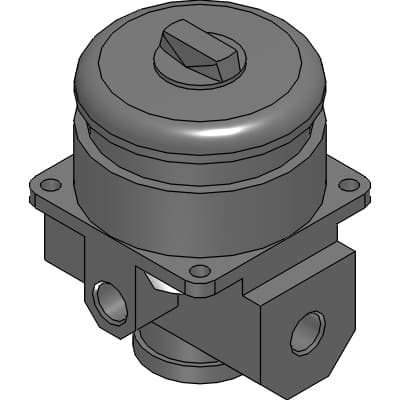

Product Model
2302-2C
Key Features
- 1Precision Pressure Control: The CKD 2302-2C features a dial for easy pressure adjustment, ensuring precise control over air pressure.
- 2Large Flow Rate Control: Designed to handle large flow rates, making it suitable for various industrial applications.
- 3Reliable Construction: Built with a robust design, including a relief mechanism for added safety.
- 4Versatile Port Options: Available in 1/4" port size, compatible with a range of pneumatic systems.
- 5Compact Design: Weighs only 1 kg, making it easy to integrate into factory automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | 2302 : Standard | Port size | 2C : Rc1/4 |
| Option 1 | Blank : Standard | Option 3 | Blank : None |
| Option 2 | Blank : None | A | 81mm |
| B | 99mm | C | 24mm |
| D | 28mm | E | 67.5mm |
| F | 56mm | G | 4-φ5.6 throughmm |
| H | φ6mm | I | φ67mm |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/383/2302%E3%83%BB2303%E3%83%BB2304?t=list&cid=69&sid=0&p=2 |
Specifications may be subject to change without notice
