Product Model

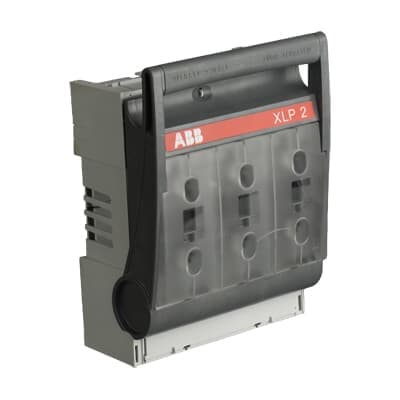

XLP2 S&J -6M12

Manufacturer

ABB

Key Features

1High Safety and Reliability: Ensures a high level of safety with IP30 protection from the front in the closed position.
2Robust Design: Features a robust, user-friendly design that switches rated currents from 100A to 630A at voltages from 220V to 690V.
3Compact and Versatile: Available in 1, 2, 3, and 4 pole versions, including a wide range of cable clamps and snap-on accessories.
4Compliant with Standards: Tested according to EN / IEC 60947-3 for compliance with international safety standards.
5Easy Installation: Equipped with plug-in connectors for easy installation and busbar mounting options for flexible setup.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	210 mm
Product Net Height	290 mm	Product Net Depth / Length	130 mm
Product Net Weight	2.8 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH2	Fuse System	DIN
Handle Type	Fuse holder 3P	Mounting Type	Baseplate
Number of Poles	3	Power Loss	at Rated Load 13 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	400 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)	(690 V) 315 A	Rated Operational Current AC-22B (Ie)	(500 V) 400 A (800 V) 400 A
Rated Operational Voltage	500 V AC 690 V AC	Rated Voltage (Ur)	500 V AC 690 V AC
Special Functions	Not Included	Standards	IEC60947-3 GB/T14048.3
Terminal Type	Lug terminals	Object Classification Code	S
ETIM 8	EC001040 - Fuse switch disconnector	ETIM 9	EC001040 - Fuse switch disconnector
eClass	V11.1 : 27371401	WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID	1SEP101892R1004

Specifications may be subject to change without notice
