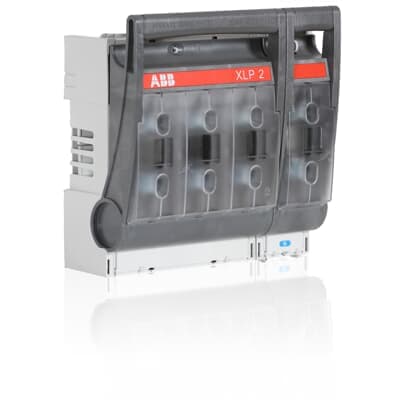

Product Model
XLP2-4P
Key Features
- 1High Current Rating: Supports up to 400 A in a 4-pole configuration.
- 2Compact Design: Compact dimensions (290 mm x 129 mm x 289 mm) for easy installation.
- 3IP30 Protection: Front IP30 degree of protection according to IEC 60529.
- 4Integrated Cable Clamps: Easy cable connections with integrated bridge clamps or bolts.
- 5Quick-Make Operation: Quick-make operation device for efficient switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 290 mm |
| Product Net Height | 129 mm | Product Net Depth / Length | 289 mm |
| Product Net Weight | 3.87 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH2 | Fuse System | DIN |
| Handle Type | Front cover 4P | Mounting Type | Baseplate |
| Number of Poles | 4P | Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-22B (Ie) | (500 V) 400 A | Rated Operational Voltage | 500 V AC |
| Rated Voltage (Ur) | 500 V AC | Special Functions | Not Included |
| Standards | IEC60947-3 GB/T14048.3 | Terminal Type | Lug terminals |
| Object Classification Code | S | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP600124R0001 |
Specifications may be subject to change without notice
