Product Model

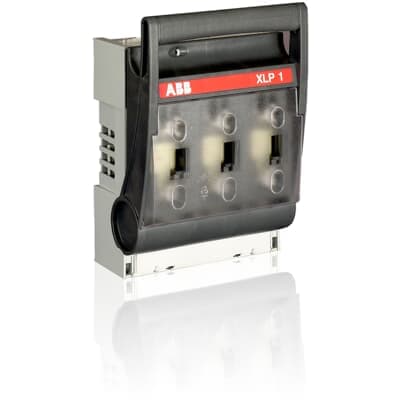

XLP1-6M10
Key Features
- 1High Protection: The XLP1-6M10 offers robust protection with stringent isolation requirements, ensuring safe operation in various applications.
- 2Reliable Operation: Engineered for reliable performance, this fuse switch disconnector is ideal for critical power applications, distribution boards, and switchboards.
- 3Compact Design: Compact and easy to install, the XLP1-6M10 features integrated cable clamps and M10 bolts for secure mounting.
- 4Wide Voltage Range: Suitable for operational voltages of 500-800VAC, making it versatile for different electrical systems.
- 5Compliance & Standards: Type-tested according to EN 60947-3 and meets BGV A2 standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 185 mm |
| Product Net Height | 270 mm | Product Net Depth / Length | 116 mm |
| Product Net Weight | 1.78 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH1 | Fuse System | DIN |
| Handle Type | Front cover 3P | Mounting Type | Baseplate |
| Number of Poles | 3P | Power Loss | at Rated Load 7.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A (800 V) 250 A |
| Rated Operational Voltage | 500 V AC 690 V AC 800 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC 800 V AC |
| Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
| Terminal Type | Bolt | Object Classification Code | S |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601052 | E-Number (Sweden) | 3171954 |
| Manufacturer ID | 1SEP101891R0004 |
Specifications may be subject to change without notice
