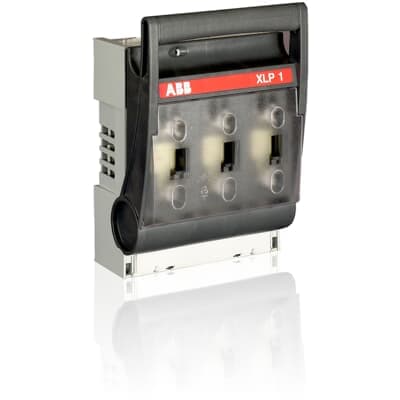

Product Model
XLP1
Key Features
- 1High Safety: IP30 degree of protection from the front, ensuring personal safety.
- 2Easy Installation: Quick-make operation device and integrated IP20 cable termination.
- 3Versatile Applications: Suitable for UPS, telecom power supplies, and general protection in smaller distribution panels.
- 4Robust Design: Sturdy design with V-0 plastic materials for durability.
- 5Wide Compatibility: Compatible with various cable terminals and snap-on accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP30 | Product Net Width | 185 mm |
| Product Net Height | 270 mm | Product Net Depth / Length | 116 mm |
| Product Net Weight | 1.6 kg | Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
| Fuse Size | NH1 | Fuse System | DIN |
| Handle Type | Front cover 3P | Mounting Type | Baseplate |
| Number of Poles | 3P | Power Loss | at Rated Load 7.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A (800 V) 250 A |
| Rated Operational Voltage | 500 V AC 690 V AC 800 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC 800 V AC |
| Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
| Terminal Type | Lug terminals | Object Classification Code | S |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601050 | E-Number (Sweden) | 2307320 |
| Manufacturer ID | 1SEP101891R0001 |
Specifications may be subject to change without notice
