Product Model

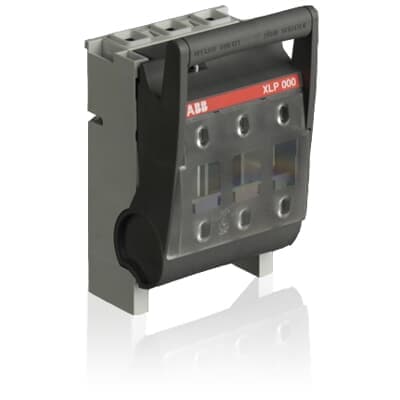

XLP000-6CC

Manufacturer

ABB

Key Features

1High Safety: Designed with V-0 plastic materials and IP30 protection for enhanced safety.
2Easy Operation: Quick-make operation device ensures simple and efficient use.
3Compact Design: Integrated IP20 cable termination and compact size for easy installation.
4Versatile Applications: Suitable for UPS, telecom power supplies, and general protection in distribution panels.
5Compliance Standards: Meets EN60947-3 and EN14001 standards for reliability and recyclability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Degree of Protection	IP30	Product Net Width	90 mm
Product Net Height	152 mm	Product Net Depth / Length	80 mm
Product Net Weight	0.4 kg	Degree of Protection	IP30
Device Type Manager (DTM)	Fuseswitchdisconnector	Electronic Fuse Monitoring	No
Fuse Size	NH000 NH00C	Fuse System	DIN
Handle Type	Front cover 3P	Mounting Type	Baseplate
Number of Poles	3P	Power Loss	at Rated Load 1.4 W
Rated Conditional Short-Circuit Current (Inc)	(690 V) 50 kiloampere rms	Rated Current (In)	100 A
Rated Frequency (f)	Main Circuit 50/60 Hz	Rated Impulse Withstand Voltage (Uimp)	Main Circuit 6 kV
Rated Operational Current AC-21B (Ie)	(690 V) 50 A	Rated Operational Current AC-22B (Ie)	(500 V) 100 A
Rated Operational Current AC-23B (Ie)	(400V) 80 A	Rated Operational Voltage	400 V AC 500 V AC 690 V AC
Rated Voltage (Ur)	400 V AC 500 V AC 690 V AC	Special Functions	Not Included
Standards	IEC60947-3 GB/T14048.3	Terminal Type	Cable Clamp
Object Classification Code	S	ETIM 8	EC001040 - Fuse switch disconnector
ETIM 9	EC001040 - Fuse switch disconnector	eClass	V11.1 : 27371401
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)	E-Number (Finland)	3601062
E-Number (Norway)	1687100	E-Number (Sweden)	2307300
Manufacturer ID	1SEP201428R0001

Specifications may be subject to change without notice
