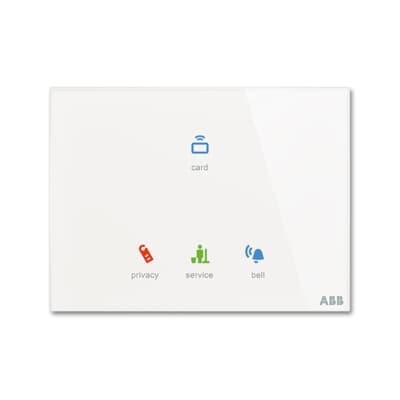

Product Model
TA/U3.2.1-CG
Key Features
- 1Configurable device with customizable icons and texts via web configuration tool.
- 2Supports KNX functions through innovative color concept and standard illumination.
- 3Integrated temperature sensor and proximity function for enhanced monitoring.
- 4Compatible with KNX bus system for seamless integration in home and building automation.
- 5Compact design with dimensions of 86 mm x 157 mm and 207 grams in weight.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Number of Buttons | 3 | Number of Actuation Points | 3 |
| Compatible Bus Systems | KNX (TP) | Product Range | KNX ABB tacteo® |
| Product Net Width | 115 mm | Product Net Height | 86 mm |
| Product Net Depth / Length | 34 mm | Product Net Weight | 130.1 g |
| Built-In Depth (t2) | 35 mm | ETIM 9 | EC000672 - Touch sensor for bus system |
| eClass | V11.0 : 27143138 | UNSPSC | 39121801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CKA006300A1585 |
Specifications may be subject to change without notice
