Product Model

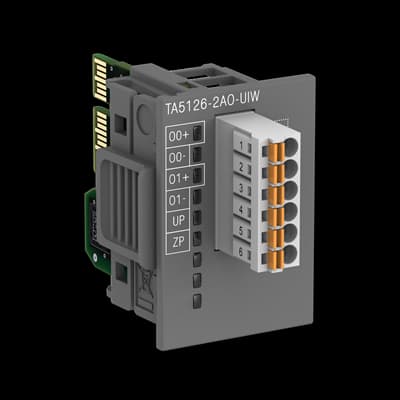

TA5126-2AO-UIW
Key Features
- 112-bit resolution for precise analog output.
- 2Galvanic isolation for enhanced safety and reliability.
- 3Wide temperature range operation from -20°C to +60°C.
- 4Configurable output range from 0 V to +10 V and 0 mA to +20 mA.
- 5Compatible with AC500-eCo V3 systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.019 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.035 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Product Main Type | TA5126 |
| Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
| ETIM 8 | EC001420 - PLC analogue I/O-module | UNSPSC | 32151705 |
| SCIP | db3ae1e3-eeed-4dd4-b704-2029e70ea409 Germany (DE) | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187100R0203 |
Specifications may be subject to change without notice
