Product Model

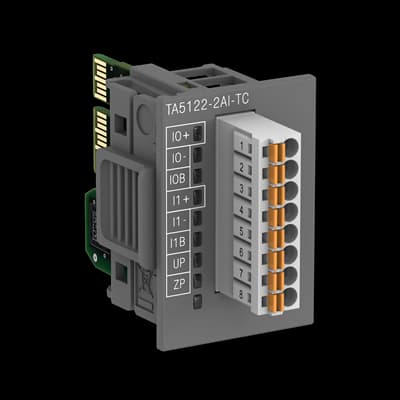

TA5122-2AI-TC
Key Features
- 1High-precision thermocouple readings with 16-bit resolution.
- 2Supports multiple thermocouple types (B, E, J, K, N, R, S, T).
- 3Includes spring terminals for easy and secure connections.
- 4Ideal for industrial automation and control systems.
- 5Compatible with ABB's AC500-eCo platform for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.015 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.035 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Function | 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16 Bit. Spring terminals included |
| Number of Analog Configurable I/Os | 0 | Analog Inputs | 2 |
| Input Signal | TC | Resolution | Analog Input 16 bit |
| Degree of Protection | Housing IP20 | Product Main Type | TA5122 |
| Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
| ETIM 8 | EC001420 - PLC analogue I/O-module | UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP187100R0004 |
Specifications may be subject to change without notice
