Product Model

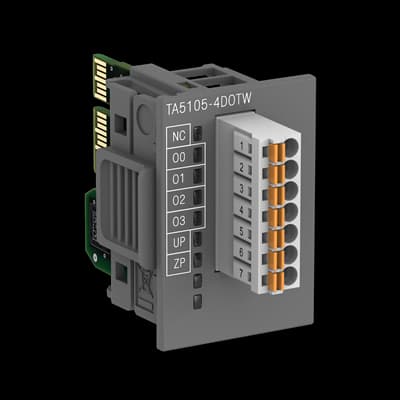

TA5105-4DOTW
Key Features
- 1Ensures safe operation between output groups and the rest of the module.
- 2Withstands up to 35 V DC for 0.5 seconds, ensuring reliable performance under transient conditions.
- 3Can be mounted horizontally or vertically, providing flexibility in installation.
- 4Designed for natural convection cooling without hindrance from cable ducts or other parts.
- 5Weighs only 16 grams, making it ideal for space-constrained control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | TA5105-4DOTW | CN8 | 85389091 |
| Country of Origin | China (CN) Germany (DE) | Customs Tariff Number | 85389091 |
| EAN | 4053546054125 | ETIM 7 | EC001419 - PLC digital I/O-module |
| ETIM 8 | EC001419 - PLC digital I/O-module | ETIM 9 | EC001419 - PLC digital I/O-module |
| Frame Size | Undefined | Gross Weight | 0.034 kg |
| Invoice Description | Digital output option board. 4 DO: 24VDC 0.5A. Spring terminals included (TA5105-4DOTW) | Made To Order | No |
| Maximum Order Quantity | 0 piece | Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 EAN | 4053546054125 | Package Level 1 Height | 50 mm |
| Package Level 1 Units | 1 carton | Package Level 1 Width | 40 mm |
| Product Main Type | TA5105 | Product Name | Distributed Automation PLCs |
| Product Net Depth / Length | 54.2 mm | Product Net Height | 42 mm |
| Product Net Weight | 0.02 kg | Product Net Width | 28.5 mm |
| Product Type | PLC-AC500-eCo | Quote Only | No |
| Selling Unit of Measure | piece | Short Description | TA5105-4DOTW: Digital output option board |
| Stocked At (Warehouses) | Menden, Germany Beijing, China Beijing, China Singapore, Singapore | UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | 27-24-22-92 | Manufacturer ID | 1SAP187000R0202 |
Specifications may be subject to change without notice
