Product Model

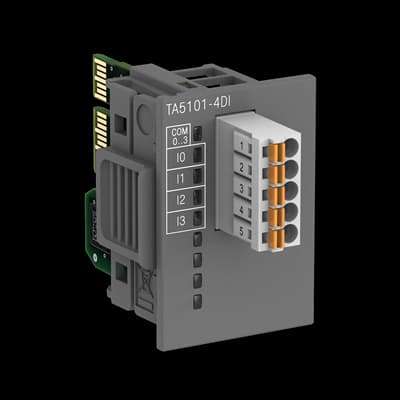

TA5101-4DI
Key Features
- 1High-Quality Digital Input Module: The ABB TA5101-4DI is designed for high-performance digital input applications in industrial automation.
- 24 DI: 24VDC: Equipped with 4 digital inputs operating at 24VDC, ensuring precise and reliable data transmission.
- 3Spring Terminals Included: Comes with spring terminals for easy and secure connection to your system.
- 4Compact Dimensions: Measuring 54.2 mm in length, 42 mm in height, and 28.5 mm in width, it fits seamlessly into any industrial setup.
- 5IP20 Protection: Offers IP20 degree of protection, ensuring the module is safe from dust and minor splashes, making it suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.015 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.032 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Function | 4 DI: 24VDC. Spring terminals included |
| Number of Digital Inputs | 4 | Number of Digital Configurable I/Os | 0 |
| Input Voltage Type | DC | Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V | Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 4 ⦠8 ms |
| Degree of Protection | IP20 | Product Main Type | TA5101 |
| Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
| ETIM 8 | EC001419 - PLC digital I/O-module | UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP187000R0001 |
Specifications may be subject to change without notice
