Product Model

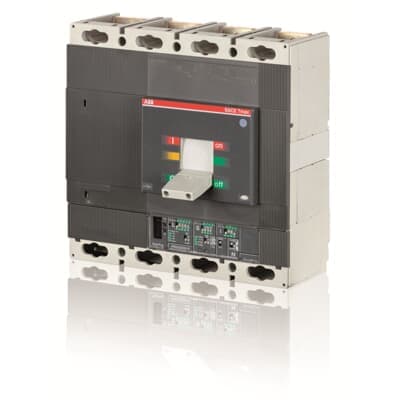

T6H 800 UL/CSA PR222DS/P-LSIG 800 4p F F
Key Features
- 15000 cycles at 60 cycles per hour.
- 2Ensures precise and reliable operation.
- 3Meets stringent safety and performance standards.
- 4Suitable for heavy-duty applications requiring multiple poles.
- 5Easy installation and maintenance with front terminals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK10103A1058 9AKK108467A6707 | Product Net Width | 280 mm |
| Product Net Height | 268 mm | Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg | Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Suitable For | T6 | Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F | Mechanical Durability | 20000 cycle 120 cycles per hour |
| Number of Poles | 4P | Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Voltage | 600 V AC |
| Rated Uninterrupted Current (Iu) | 800 A | Release | PR222DS/P-LSIG |
| Release Type | EL | Short-Circuit Performance Level | H |
| Standards | UL | Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers Front | Test Voltage Max (Utest) | 3500 V |
| Interrupting Rating acc. to UL489 | (240 V AC) 200 kA (480 V AC) 65 kA (600 V AC) 35 kA | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA061699R1 |
