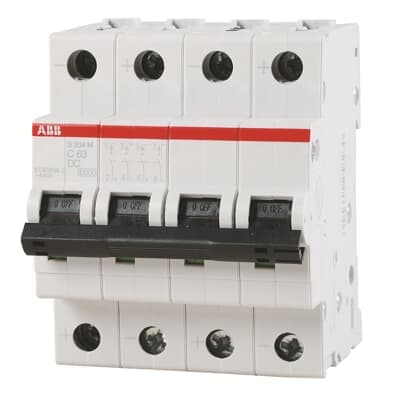

Product Model
S204M-B10DC
Key Features
- 1Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards for universal application.
- 2High short-circuit breaking capacity up to 10 kA at 230/400 V AC.
- 3Flexible installation with screwless terminals for easy cable connection.
- 4Compact design with dimensions of 88 mm x 69 mm x 0.5 kg.
- 5Enhanced safety features including overcurrent and short-circuit protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60898-2 GB 10963 IEC/EN 60947-2 GB 14048 | Tripping Characteristic | B |
| Rated Voltage (Ur) | 440 V | Rated Operational Voltage | 440 V DC |
| Rated Insulation Voltage (Ui) | 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | DC | Rated Current (In) | 10 A |
| Rated Short-Circuit Capacity | (400 V) 10 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V DC) 10 kA |
| Rated Conditional Short-Circuit Current (Inc) | (400 V) 10 kA | Frequency (f) | 0...0 Hz |
| Rated Frequency (f) | 0-0 Hz | Power Loss | 8.12 W |
| Energy Limiting Class | 3 | Number of Protected Poles | 4 |
| Number of Poles | 4 | Overvoltage Category | III |
| Release Type | B | Options Provided | DC application |
| Accessories Available | Yes | Connecting Capacity | Flexible 0 ... 25 mm² Rigid 0 ... 35 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP20 | Pollution Degree | 3 |
| Width in Number of Modular Spacings | 4 | Product Net Width | 0.070 m |
| Product Net Height | 0.088 m | Product Net Depth / Length | 0.044 m |
| Product Net Weight | 0.500 kg | Built-In Depth (t2) | 69 mm |
| ETIM 8 | EC000042 - Miniature circuit breaker (MCB) | ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85362010 | eClass | V11.0 : 27141901 |
| Object Classification Code | F | Manufacturer ID | 2TAZ112400R0105 |
Specifications may be subject to change without notice
