Product Model

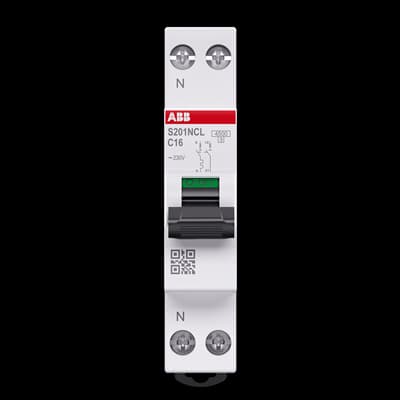

S201NC L-C16
Key Features
- 1Advanced Protection: Offers two tripping mechanisms for overload and short circuit protection.
- 2Compact Design: Fits seamlessly into DIN rail systems, saving space.
- 3High Breaking Capacity: Up to 4.5 kA at 16 A, ensuring reliable circuit protection.
- 4Versatile Application: Suitable for residential, commercial, and industrial use.
- 5Compliance with Standards: Meets IEC/EN 60898-1, IEC/EN 60947-2, UL1077, and CSA 22.2 No. 235 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Power Loss | 4.2 W | Number of Batteries | 0 |
| Product Net Width | 17.8 mm | Product Net Height | 91.6 mm |
| Product Net Depth / Length | 75 mm | Dimension Diagram | 9AKK108469A4078 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 8536200000 | Object Classification Code | F |
| Manufacturer ID | 2TAZ181110R0164 |
Specifications may be subject to change without notice
