Product Model

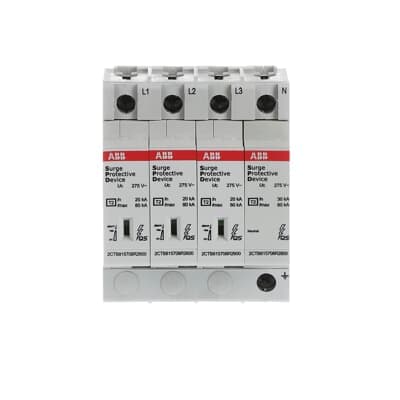

OVR T2 3N 80-275s P QS
Key Features
- 1High Surge Current Protection: Up to 80kA for robust protection against transient overvoltages.
- 2Wide Voltage Rating: Compatible with systems up to 275V, ensuring broad application flexibility.
- 3DIN Rail Mounting: Easy installation on DIN rail systems for efficient integration.
- 4Thermal Monitoring: QuickSafe thermal monitoring for enhanced reliability and safety.
- 5Potential-Free Switch: TS variants include a potential-free switch for reliable signaling and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-S |
| Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
| Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | 1.4 kV (L-N) 1.4 kV (N-PE) 1.4 kV |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | (L-N) 337 V (N-PE) 1200 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 80 kA |
| Impulse Current | I (imp, 10 / 350 µs) 6.25 kA | Short Circuit Withstand Icc | 100 kA |
| Power Loss | 49 mW | Arrester Class | II |
| Number of Protected Poles | 4 | Number of Poles | 4 |
| Number of Conductors | 4 | Position of Neutral Terminals | Right |
| Transmission Standard | Optic | Version | Plug-in |
| Mounting Type | DIN-Rail | Product Type | QS |
| Options Provided | Industry, commercial building | Preventive Maintenance Feature | Yes |
| Status Indicator | Yes | Fuse Size | 4 modular spacing |
| Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
| Width in Number of Modular Spacings | 4 | Product Net Width | 71.2 mm |
| Product Net Height | 88 mm | Product Net Depth / Length | 76.7 mm |
| Product Net Weight | 0.6 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
| eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
| Manufacturer ID | 2CTB815708R2000 |
