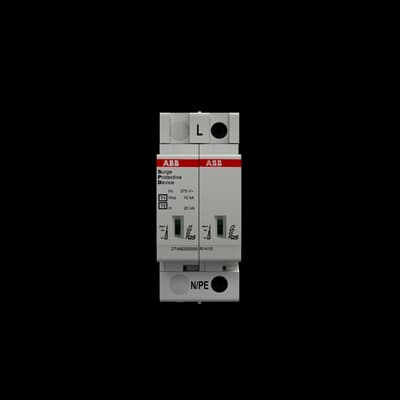

Product Model
OVR T1-T2 15-275s P QS
Key Features
- 1High-Energy Surge Protection: Safeguards against transient overvoltages with a rated impulse current of 12.5 kA.
- 2DIN Rail Mounting: Conveniently mounted on DIN rails for easy installation.
- 3Wide Operating Temperature Range: Operates between -40°C to 80°C, ensuring reliability in various environments.
- 4IP20 Rating: Meets IP20 standards for indoor use, providing protection against solid objects and dust.
- 5Mechanical Indicators: Fitted with mechanical indicators to monitor each arrester's operation status.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of Batteries | 0 | Product Net Width | 0.0356 m |
| Product Net Height | 0.088 m | Product Net Depth / Length | 0.0767 m |
| Product Net Weight | 0.32 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| eClass | V11.0 : 27130805 | Object Classification Code | F |
| Manufacturer ID | 2TAM201000R1410 |
Specifications may be subject to change without notice
