Product Model

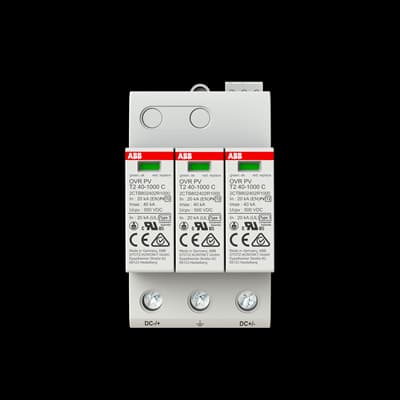

OVR PV T2 40-1000 P TS
Key Features
- 1Protects against up to 40 kA of surge current.
- 2Offers DC+ to DC-, DC+ to G, and DC– to G protection modes.
- 3Features a green to red indicator for easy replacement when the device reaches its end of life.
- 4Meets IEC 61643-31 and UL 1449 5th edition standards for reliability and safety.
- 5Fits seamlessly into string combiner boxes with dimensions of 99 x 54 x 73 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61643-31 UL14419 Ed5 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 1000 V DC | Voltage Rating DC | 1000 V |
| Voltage Protection Level ( Up) | 4 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1000 V (L-L) 1000 V (L-N) 0 V (N-PE) 0 V |
| Maximum Power Point (MPP) Voltage | 1000 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 10 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 10 kA |
| Arrester Class | II | Number of Protected Poles | 2 |
| Number of Auxiliary Contacts NO | 1 | Number of Poles | 3 |
| Transmission Standard | Optic | Version | Plug-in |
| Mounting Type | DIN-Rail | Options Provided | Solar |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Fuse Size | 3 modular spacing | Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1000 V (L-L) 1000 V (L-N) 0 V (N-PE) 0 V |
| Voltage Protection Rating UL/CSA (VPR) | Lpe 3 kV Ll 3 kV | Product Net Width | 54 mm |
| Product Net Height | 90 mm | Product Net Depth / Length | 66 mm |
| Product Net Weight | 0.3 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363090 |
| eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
| Manufacturer ID | 2CTB802401R1000 |
Specifications may be subject to change without notice
