Product Model
OVR PV T1-T2 12.5-1000 M C QS
Key Features
- 1Comprehensive Protection: Designed to protect systems against transient overvoltages and lightning currents.
- 2High Voltage Rating: Compatible with 1000 V DC and 1100 V AC, ensuring robust protection.

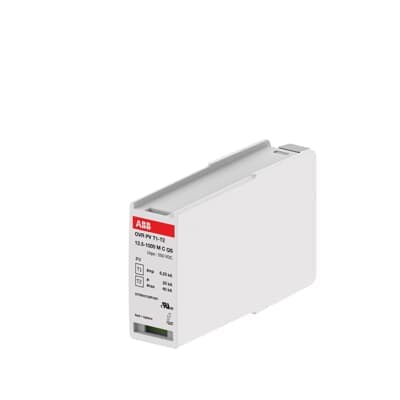

- 3Compact Design: Plug-in version with a compact size of 24 mm x 45 mm x 74 mm, ideal for DIN rail mounting.
- 4Advanced Technology: Equipped with QuickSafe technology for self-protection up to higher current values.
- 5Certified Standards: Meets IEC 61643-11, EN 50539-11, and UL 1449 4th edition standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61 643-11 / EN 50539-11 / UL 1449 4th ed | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 1000 V DC | Voltage Rating DC | 1000 V |
| Voltage Protection Level ( Up) | 3.8 kV | Maximum Power Point (MPP) Voltage | 1000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA I (total, 10 / 350 µs) 12.5 kA |
| Arrester Class | I II | Number of Protected Poles | 2 |
| Number of Conductors | 2 | Transmission Standard | Optic |
| Version | Plug-in | Mounting Type | DIN-Rail |
| Product Type | QS | Options Provided | Solar |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Number of Batteries | 0 | Fuse Size | 3 modular spacing |
| Degree of Protection | IP20 | Product Net Width | 24 mm |
| Product Net Height | 45 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.071 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8535 40 00 |
| eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
| Manufacturer ID | 2CTB812122R1001 |
Specifications may be subject to change without notice
