Product Model

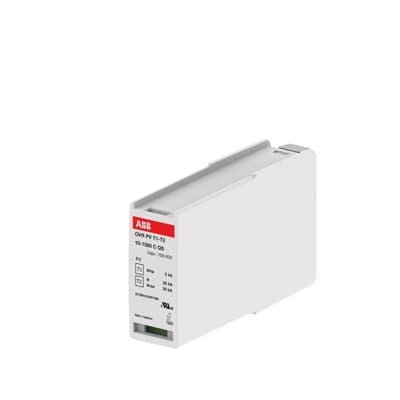

OVR PV T1-T2 10-1500 C QS
Key Features
- 1High Voltage Protection: Safeguards against transient overvoltages up to 1500 V DC.
- 2Robust Construction: Built with a durable design and IP20 degree of protection for reliable operation.
- 3Compliance with Standards: Meets IEC 61643-11 and UL 1449 4th Edition standards for enhanced safety.
- 4Nominal Discharge Current: Offers 20 kA nominal discharge current for effective surge protection.
- 5Easy Installation: Designed for DIN rail mounting, making it simple to integrate into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61 643-11 / EN 50539-11 / UL 1449 4th ed | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 1500 V DC | Voltage Rating DC | 1500 V |
| Voltage Protection Level ( Up) | 5 kV | Maximum Power Point (MPP) Voltage | 1500 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA I (total, 10 / 350 µs) 10 kA |
| Arrester Class | I II | Number of Protected Poles | 2 |
| Number of Conductors | 2 | Transmission Standard | Optic |
| Version | Plug-in | Mounting Type | DIN-Rail |
| Product Type | QS | Options Provided | Solar |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Number of Batteries | 0 | Fuse Size | 3 modular spacing |
| Degree of Protection | IP20 | Product Net Width | 24 mm |
| Product Net Height | 45 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.130 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8535 40 00 |
| eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
| Manufacturer ID | 2CTB812102R1500 |
Specifications may be subject to change without notice
