Product Model

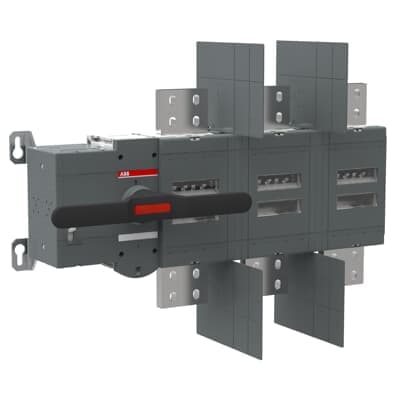

OTM4000E3W8M230C
Key Features
- 1Rated up to 1000 V AC.
- 2Designed for 20,000 operation cycles.
- 3Includes inbuilt safety features and manual operation in emergency.
- 4Ideal for space-efficient installations.
- 5Suitable for 220-240 V AC and 10 W per pole motor operational voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 776.5 mm | Product Net Height | 410 mm |
| Product Net Depth / Length | 165.5 mm | Product Net Weight | 45.5 kg |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 4000 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Phase distance 185 mm | Handle Color | Black |
| Handle Type | Direct mounted handle | Lock Type | Yes |
| Mechanical Durability | 5000 | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 120 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 4000 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 4000 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA | Special Functions | Wide phase distance 185 |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA129218R1001 |
Specifications may be subject to change without notice
