Product Model

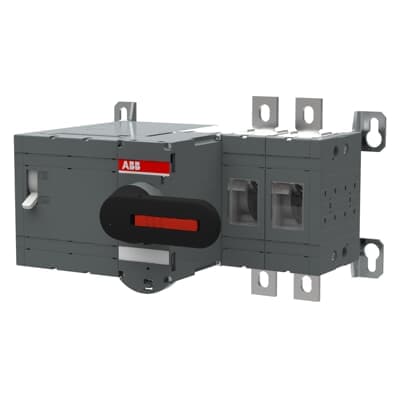

OTM315E2M230V
Key Features
- 1High Performance: Designed for efficient operation with robust mechanical endurance.
- 2Comprehensive Safety Features: Equipped with inbuilt safety features and manual operation in emergency.
- 3Manual Operation Capability: Allows for manual operation in case of emergencies.
- 4Compact Design: Compact solution suitable for various applications.
- 5Durable Construction: Built to withstand 20,000 operation cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 298 mm |
| Product Net Height | 185 mm | Product Net Depth / Length | 211.5 mm |
| Product Net Weight | 5 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 315 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Direct mounted handle | Lock Type | Yes |
| Mechanical Durability | 16000 | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 2P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA (500 A fuse, 690 V) 80 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A (1000 V AC) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 100 kW (400 ... 415 V) 160 kW (500 V) 220 kW (690 V) 315 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m | Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601503 |
| Manufacturer ID | 1SCA121189R1001 |
