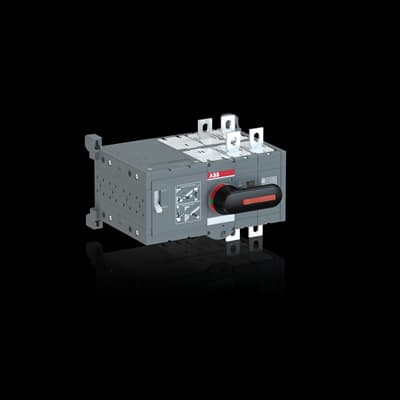

Product Model
OTM315E2CM230V
Key Features
- 1Electrically-operated changeover switch with motorized operation.
- 2Designed for 2-pole applications with a rated current of 315A.
- 3Compatible with supply voltages of 220Vac-240Vac (230Vac nominal).
- 4Includes handle for manual operation and storage clip for spare fuses.
- 5Meets IEC 60947-6-1 standards for reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 280 mm 11.02 in | Product Net Height | 185 mm 7.28 in |
| Product Net Depth / Length | 235 mm 9.25 in | Product Net Weight | 5.2 kg 11.46 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 315 A | Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 2P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA121221R1001 |
Specifications may be subject to change without notice
