Product Model

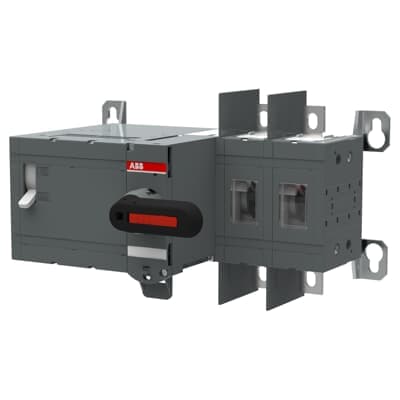

OTM200E2WM230V
Key Features
- 1High-performance motorized switch-disconnector with manual operation capability.
- 2Compact design with wide phase distance for easy installation.
- 3Equipped with a handle for manual operation and terminal bolt kit.
- 4Integrated spare fuse storage clip and male connector for control circuit.
- 5Meets IEC 60947 technical standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 261 mm |
| Product Net Height | 150 mm | Product Net Depth / Length | 181 mm |
| Product Net Weight | 4.8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance | Handle Color | Black |
| Handle Type | Direct mounted handle | Lock Type | Yes |
| Mechanical Durability | 20000 | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 2P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A (1000 V AC) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW (400 ... 415 V) 110 kW (500 V) 132 kW (690 V) 200 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | Wide phase distance | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601512 |
| Manufacturer ID | 1SCA121187R1001 |
Specifications may be subject to change without notice
