Product Model

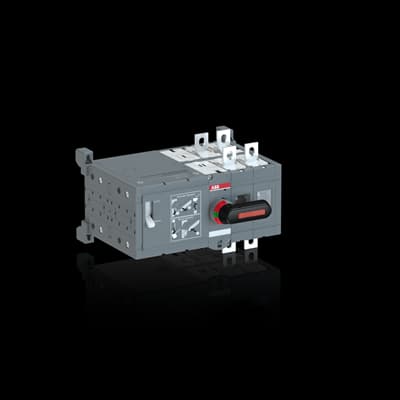

OTM160E2CM230V
Key Features
- 1High Reliability: Designed to withstand harsh industrial environments with a rated insulation voltage of 1000 V and impulse withstand voltage of 12 kV.
- 2Robust Design: Constructed with a robust mechanism at the end of the switch, ensuring durability and long operational life.
- 3Advanced Safety Features: Equipped with a handle for manual operation and bolt kit with nut and washers for all terminals and male connectors.
- 4High Operational Current: Supports up to 160 A operational current at 500 V, making it suitable for various industrial applications.
- 5Compliance with Standards: Meets EU Directive 2002/95/EC (RoHS) and other international standards for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 238 mm 9.37 in | Product Net Height | 150 mm 5.91 in |
| Product Net Depth / Length | 197 mm 7.76 in | Product Net Weight | 3.7 kg 8.16 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 2P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601262 |
| Manufacturer ID | 1SCA121216R1001 |
Specifications may be subject to change without notice
