Product Model

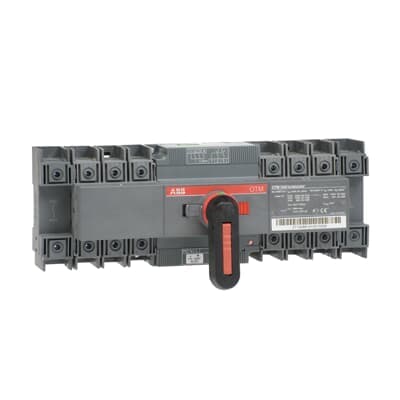

OTM100F4CMA24D
Key Features
- 1Compact design for easy installation in confined spaces.
- 2Reliable performance tested according to IEC 60947-3 and IEC 60947-6-1 standards.
- 3Safe operation with finger-safe construction and mechanical/electrical locking options.
- 4Versatile 3- and 4-pole switches suitable for various applications, including GenSet applications.
- 5Enhanced logistics with a wide supply voltage range for effortless design work.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 283 mm 11.14 in | Product Net Height | 100 mm 3.94 in |
| Product Net Depth / Length | 116 mm 4.57 in | Product Net Weight | 1.86 kg 4.1 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 115 A | Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 24 V DC | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 100 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 80 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW | Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601575 |
| Manufacturer ID | 1SCA124066R1001 |
Specifications may be subject to change without notice
