Product Model

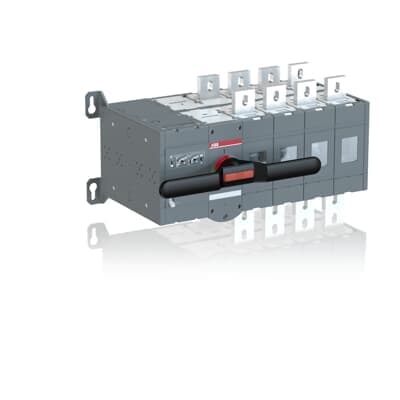

OTM1000E4CM230C
Key Features
- 1High-rated insulation voltage of 1000 V for reliable operation.
- 2Robust construction with a conventional free-air thermal current of 1000 A at 40°C.
- 3Mechanism at the end of the switch for easy manual operation.
- 4Includes a handle for manual operation and a bolt kit with nut and washers for all terminals.
- 5Designed for base mounting with a pollution degree of 3, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 587 mm 23.11 in |
| Product Net Height | 306 mm 12.05 in | Product Net Depth / Length | 297 mm 11.69 in |
| Product Net Weight | 62 kg 136.69 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1000 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 19 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1000 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3641776 |
| Manufacturer ID | 1SCA112703R1001 |
Specifications may be subject to change without notice
