Product Model

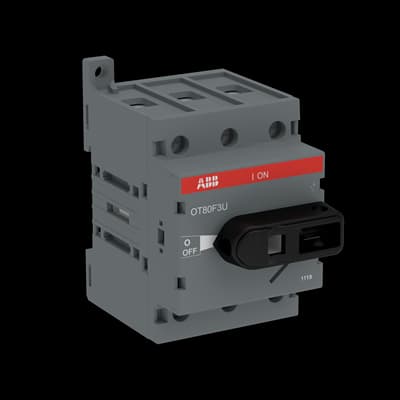

OT80F3U
Key Features
- 180 A for robust power handling.
- 2Finger-proof dead front construction and terminal shrouds reduce live part risks.
- 3Easy installation and maintenance with modular design.
- 4Handles can be padlocked in the "OFF" position for added security.
- 5Welded contact protection and clear position indication ensure reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301263D0201 |
| Pollution Degree | 3 | Product Net Width | 52.5 mm |
| Product Net Height | 91.5 mm | Product Net Depth / Length | 72.5 mm |
| Product Net Weight | 0.24 kg | Cable Cross-Section | Cu 1.5 ... 35 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 80 A | Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Type | Knob Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 75 A (500 V) 58 A (690 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 37 kW (500 V) 37 kW (690 V) 18.5 kW | Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 2.1 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Special Functions | No | Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 2 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 80 A | Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 10 Hp (440 ... 480 V AC) Single Phase 20 Hp (550 ... 600 V AC) Single Phase 20 Hp (220 ... 240 V AC) Three Phase 20 Hp (440 ... 480 V AC) Three Phase 40 Hp (550 ... 600 V AC) Three Phase 40 Hp |
| Tightening Torque | acc. IEC 60947-1 2 N·m | Object Classification Code | Q |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105412R1001 |
