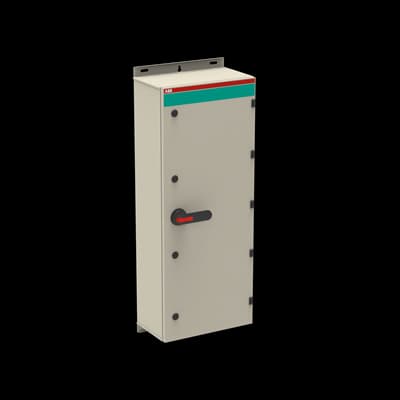

Product Model
OT630KLUU3BZ
Key Features
- 1Made with a rigid glass-reinforced polycarbonate enclosure, UV protected and resistant to low-pressure water.
- 2Includes gas pressure relief function, earthed door via hinges, and padlockable handle for secure operation.
- 3Supports blank, ring-flange, and C-flange cable entry types with different configurations.
- 4Rated for 1000V insulation voltage, ensuring reliable performance in demanding electrical environments.
- 5Suitable for outdoor use with IP65 protection, making it ideal for harsh industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 30.55 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Handle Color | Black | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Detachable neutral |
| Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (690 V) 570 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
| Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022750R1510 |
