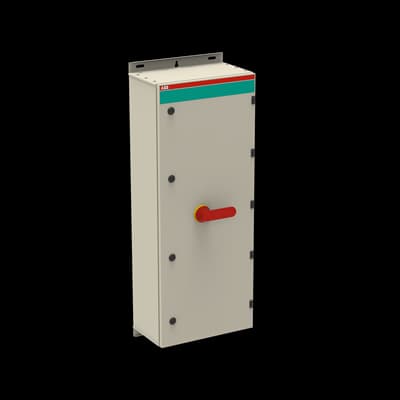

Product Model
OT630KLUU3AZ
Key Features
- 1High-Power Capability: 315kW@400V rating for demanding industrial applications.
- 2Durable Construction: Galvanized steel enclosure with polyester coating for outdoor use.
- 3Enhanced Safety Features: Padlockable handle, cover interlocks, and gas pressure relief function.
- 4IP65 Rating: High ingress protection against dust and water, ensuring reliable operation in harsh environments.
- 5Versatile Cable Options: Supports single and parallel cables with various entry types (blank, ring-flange, C-flange).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 27.25 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
| Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022549R2510 |
Specifications may be subject to change without notice
