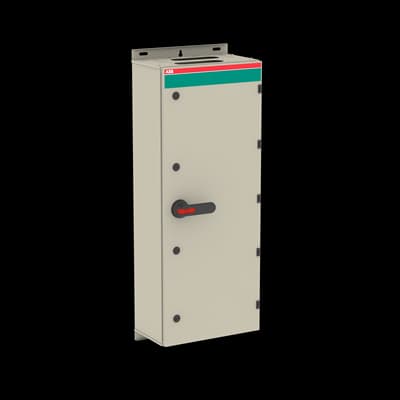

Product Model
OT630KLCC3BZ
Key Features
- 1High Current Rating: Handles up to 570A continuous current.
- 2IP65 Protection: Ensures high protection against dust and water.
- 3Self-Extinguishing Plastic: Meets UL94 V0 standards for fire safety.
- 4Padlockable Handle: Enhances security with padlockable handles.
- 5Versatile Installation: Suitable for various wiring systems including 3-, 4-, and 5-wire configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 31.45 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Handle Color | Black | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Detachable neutral |
| Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (690 V) 570 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
| Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3660696 |
| Manufacturer ID | 1SCA110121R1001 |
Specifications may be subject to change without notice
