Product Model

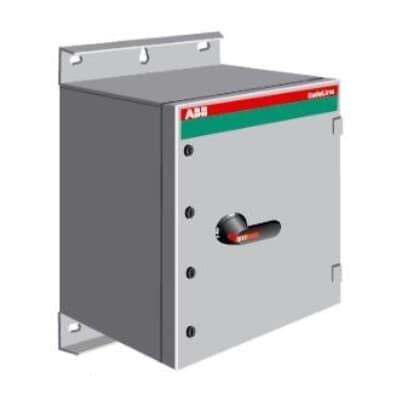

OT630KAUM3TZ
Key Features
- 1Operates effectively in ambient temperatures from -25°C to +40°C without derating.
- 2Ensures a high degree of protection against solid particles and water jets, meeting IEC 60529 standards.
- 3Made from UL94 V0 self-extinguishing plastic, reducing fire hazards.
- 4Available in 3-, 4-, and 6-pole versions to suit various electrical system configurations.
- 5Includes isolated neutral terminals and padlockable handles for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 800 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 45.1 kg |
| Cable Entry Position | Bottom/Bottom | Cable Outlets Per Side | Blank / Knock-outs: 4x63.5mm, 4x50.5mm, 25.5mm, 20.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 8pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
| Enclosure Type | MSC | Handle Color | Black |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mechanical Durability | 10000 |
| Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Position of Line Terminals | Bottom In - Bottom Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 80 kA (690 V AC) 1000Vac kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 | Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | On the Front of the Switch | Terminal Type | Bolt |
| Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA161655R1001 |
Specifications may be subject to change without notice
