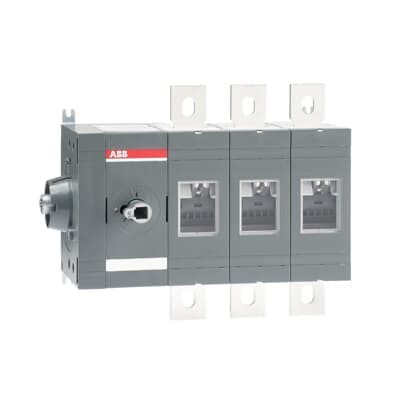

Product Model
OT630ES03
Key Features
- 1High performance and reliability in low voltage applications.
- 2Compliant with EU directives (RoHS, REACH, CE).
- 33-pole, side-operated switch-disconnector with terminal bolt kit included.
- 4Rated operational current up to 630 A at 380-415 V.
- 5Compact design with IP00 front protection and 10000 mechanical durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
| Pollution Degree | 3 | Product Net Width | 316 mm |
| Product Net Height | 250 mm | Product Net Depth / Length | 130 mm |
| Product Net Weight | 7 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 10000 |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Side operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA (800 A fuse, 690 V) 80 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3660842 |
| Manufacturer ID | 1SCA022860R2240 |
Specifications may be subject to change without notice
